CAT 5E MODULAR JACK

CAT 5E MODULAR JACK

General Characteristics

Category : 5e
Bandwidth : 100 Mhz
Application
1. Exceeds physical and electrical requirements of EIA/TIA -568-c.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
b) 100BASE-TX, IEEE 802.3u, 100 Mbps;
c) 100BASE-T4, IEEE 802.3u ,100 Mbps;
d) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
f) TP-PMD , ANSI X3T9.5, 100 Mbps;
g) 10BASE-T, IEEE802.3, 10 Mbps;
h) TOKEN RING, IEEE802.5 , 4/16 Mbps;
i) 3X-AS400, IBM, 10 Mbps;
j) POWER OVER ETHERNET, IEEE 802.3af
4. Solutions: Commercial Building, Government, Financial, Health,
Education.
Type : UTP and FTP
Connector type : RJ-45
Contacts : Phosphor bronze with 1.27 µm of gold and 2.54 µm of nickel

Certifications
UL Listed, ETL Verified and Channel

Punching : Fast Connector Tool (UTP) and Premium tool (Shielded and CAT.6A)

Insertion cycles : ≥750 RJ45 and ≥200 RJ11 y ≥200 in IDC block

PRODUCTS LIST

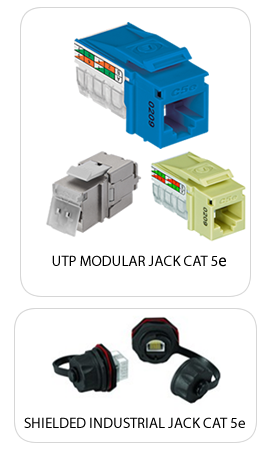

UTP MODULAR JACK T568A/B MULTILAN CAT.5E – BLUE
UTP MODULAR JACK T568A/B MULTILAN CAT.5E – WHITE
UTP MODULAR JACK T568A/B MULTILAN CAT.5E – RED
UTP MODULAR JACK T568A/B MULTILAN CAT.5E – BLACK
TYPE : U/UTP
CERTIFICATION
RoHS Compliant
ISO 9001, ISO14001
UL Listed
ETL Verified

SHIELDED MODULAR JACK T568A/B MULTILAN CAT.5E
TYPE : F/UTP
CERTIFICATION
RoHS Compliant
ISO9001/ISO14001
UL Listed

SHIELDED INDUSTRIAL JACK T568A/B CAT.5E
TYPE : F/UTP INDUSTRIAL
CERTIFICATION
RoHS Compliant
ISO9001/ISO14001
UL Listed
