CAT 6 CABLING

CAT 6E CABLING

General Characteristics

Category : 6
Bandwidth : 250 MHz

Application

1. Exceeds physical and electrical requirement of ANSI/TIA/EIA-568C.2 standard.
2. The cable is in accordance with RoHS directives (Restriction of Hazardous
Substances)
3. It can be used with the following network standards
c. GIGABIT ETHERNET, IEEE 802.3ab 1000 baseT, IEEE 802.3an 2006;
b. 100BASE-TX, IEEE 802.3u, 100 Mbps;
c. 100BASE-T4, IEEE 802.3u ,100 Mbps;
d. 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e. ATM -155 (UTP), AF-PHY-OO15.000 and AF-PHY-0018.000, 155/51/25 Mbps;
f. TP-PMD , ANSI X3T9.5, 100 Mbps;
g. 10BASE-T, IEEE802.3, 10 Mbps;
h. TOKEN RING, IEEE802.5 , 4/16 Mbps;
i. 3X-AS400, IBM, 10 Mbps;
j. Compatible whit RJ-45 Cat.6 male conector;
k. TSB-155
l. ATM LAN 1.2 Gbit/s, AF-PHY 0162.000 2001;

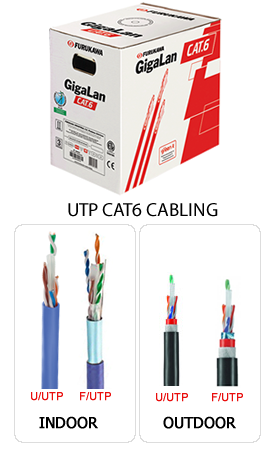

Type : UTP and FTP
Conductors : 4 pairs, 23AWG
Flammability grade : PVC, CM, CMR, PE, LSZH

Certifications
ISO 9001, ISO14001,RoHS Compliant, UL, ETL, Anatel

Standards Compliance TIA-568-C.2, ANSI/TIA 569, ISO/IEC 11801 and UL 444.

PRODUCTS LIST

DATA CABLE GIGALAN U/UTP CAT 6 23AWGX4P CMR BLUE
INSTALLATION : INDOOR
CERTIFICATION
RoHS Compliant
ISO 9001
ISO 14001
UL Listed
ETL Listed,Verified
ETL 4 Conections
ETL 6 Conections
Anatel

DATA CABLE GIGALAN U/UTP CAT 6 23AWGX4P CM BLUE
INSTALLATION : INDOOR
CERTIFICATION
RoHS Compliant
ISO 9001
ISO 14001
UL Listed
ETL Listed,Verified
ETL 4 Conections
ETL 6 Conections
Anatel

DATA CABLE GIGALAN U/UTP CAT 6 24AWGX4P IEC 60332-1 BLUE
INSTALLATION : INDOOR
CERTIFICATION
RoHS Compliant
ISO 9001
ISO 14001
ETL Verified

DATA CABLE GIGALAN U/UTP CAT 6 23AWGX4P LSZH (IEC 60332-3) GREEN
INSTALLATION : INDOOR
CERTIFICATION
RoHS Compliant
ISO 9001
ISO 14001
ETL Verified
ETL 4 Conections
ETL 6 Conections

DATA CABLE GIGALAN U/UTP CAT 6 23AWGX4P PE OUTDOOR (305M)
INSTALLATION : OUTDOOR
CERTIFICATION
RoHS Compliant
ISO 9001
ISO 14001

DATA CABLE GIGALAN F/UTP CAT 6 23AWGX4P DJ CM / CMX OUTDOOR (1000M)
INSTALLATION : OUTDOOR
CERTIFICATION
RoHS Compliant
ISO 9001
ISO 14001
ETL Verified
ETL 3 Conections
Anatel
