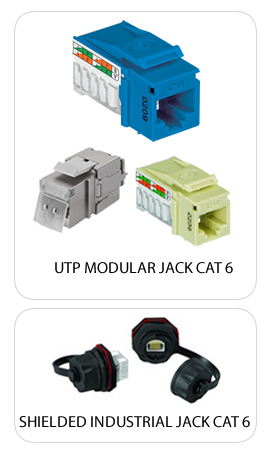

CAT 6 MODULAR JACK

CAT 6E  MODULAR JACK

General Characteristics

Category : 6
Bandwidth : 250 Mhz
Application

1. Exceeds physical and electrical requirement of ANSI/TIA/EIA-568C.2 standard.
2. The cable is in accordance with RoHS directives (Restriction of Hazardous
Substances)
3. It can be used with the following network standards
c. GIGABIT ETHERNET, IEEE 802.3ab 1000 baseT, IEEE 802.3an 2006;
b. 100BASE-TX, IEEE 802.3u, 100 Mbps;
c. 100BASE-T4, IEEE 802.3u ,100 Mbps;
d. 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e. ATM -155 (UTP), AF-PHY-OO15.000 and AF-PHY-0018.000, 155/51/25 Mbps;
f. TP-PMD , ANSI X3T9.5, 100 Mbps;
g. 10BASE-T, IEEE802.3, 10 Mbps;
h. TOKEN RING, IEEE802.5 , 4/16 Mbps;
i. 3X-AS400, IBM, 10 Mbps;
j. Compatible whit RJ-45 Cat.6 male conector;
k. TSB-155
l. ATM LAN 1.2 Gbit/s, AF-PHY 0162.000 2001;

Type : UTP and FTP
Connector type : RJ-45
Contacts : Phosphor bronze with 1.27 µm of gold and 2.54 µm of nickel

Certifications
UL Listed, ETL Verified and Channel

Punching : Fast Connector Tool (UTP) and Premium tool (Shielded and CAT.6A)

Insertion cycles : ≥750 RJ45 and ≥200 RJ11 y ≥200 in IDC block

PRODUCTS LIST

UTP MODULAR JACK T568A/B GIGALAN CAT.6 T568A/B – BLUE
UTP MODULAR JACK T568A/B GIGALAN CAT.6 T568A/B – WHITE
UTP MODULAR JACK T568A/B GIGALAN CAT.6 T568A/B – BLACK
UTP MODULAR JACK T568A/B GIGALAN CAT.6 T568A/B – RED

TYPE : U/UTP
CERTIFICATION
RoHS Compliant
ISO 9001, ISO14001
UL Listed
ETL Verified

UTP MODULAR JACK T568A/B GIGALAN CAT.6 PREMIUM – BLUE
UTP MODULAR JACK T568A/B GIGALAN CAT.6 PREMIUM – BLACK
UTP MODULAR JACK T568A/B GIGALAN CAT.6 PREMIUM – WHITE
UTP MODULAR JACK T568A/B GIGALAN CAT.6 PREMIUM – RED

TYPE : U/UTP
CERTIFICATION
RoHS Compliant
ISO 9001, ISO14001
ETL 4 connections
ETL 6 connections
UL Listed
ETL Verified

SHIELDED MODULAR JACK T568A/B CAT.6
TYPE : F/UTP
CERTIFICATION
RoHS Compliant
ISO 9001, ISO14001
UL Listed
ETL Verified

SHIELDED INDUSTRIAL JACK CAT.6 T568A/B
TYPE : F/UTP
CERTIFICATION
RoHS Compliant
ISO 9001, ISO14001
UL Listed
