CAT 6 MODULAR PLUG

CAT 6 MODULAR PLUG

General Characteristics

Category : 6
Bandwidth : 250 Mhz
Application

1. Exceeds physical and electrical requirements of EIA/TIA -568-c.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
b) 100BASE-TX, IEEE 802.3u, 100 Mbps;
c) 100BASE-T4, IEEE 802.3u ,100 Mbps;
d) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
f) TP-PMD , ANSI X3T9.5, 100 Mbps;
g) 10BASE-T, IEEE802.3, 10 Mbps;
h) TOKEN RING, IEEE802.5 , 4/16 Mbps;
i) 3X-AS400, IBM, 10 Mbps;
j) POWER OVER ETHERNET, IEEE 802.3af
4. Solutions: Commercial Building, Government, Financial, Health,
Education.

Cable type : U/UTP

Material of electrical contact : 8-way phosphor bronze with 100μin (2.54 μm) of nikel and 50μin (1.27 μm) of gold

Connector type : RJ-45

Contacts : Phosphor bronze with 1.27 µm of gold and 2.54 µm of nickel

Conductor diameter : 26 up to 22 AWG

PRODUCTS LIST

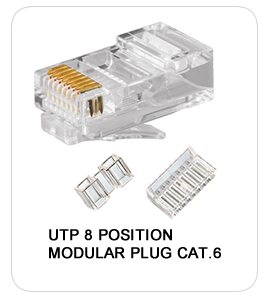

UTP 8 POSITION MODULAR PLUG CAT.6 (PKG 50 PLUGS)
CERTIFICATION
RoHS Compliant
ISO 9001, ISO14001
UL Listed
