CAT 6A MODULAR JACK

CAT 6A MODULAR JACK

General Characteristics

Category : 6A
Bandwidth : 500 Mhz
Application

1. Exceeds physical and electrical requirements ofANSI/TIA-568-C.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) 10GIGABIT ETHERNET, IEEE 802.3an, 10 Gbps;
b) GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
c) 100BASE-TX, IEEE 802.3u, 100 Mbps;
d) 100BASE-T4, IEEE 802.3u ,100 Mbps;
e) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
f) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
g) TP-PMD , ANSI X3T9.5, 100 Mbps;
h) 10BASE-T, IEEE802.3, 10 Mbps;
i) TOKEN RING, IEEE802.5 , 4/16 Mbps;
j) 3X-AS400, IBM, 10 Mbps;
k) Support POE+ (in accordance with IEEE 802.3at e TSB-184)
4. Solutions: Data Center, Commercial Building, Government, Financial, Health,
Education.

Type : UTP and FTP

Connector type : RJ-45

Contacts : Phosphor bronze with 1.27 µm of gold and 2.54 µm of nickel

Certifications
UL Listed, ETL Verified and Channel

Punching : Fast Connector Tool (UTP) and Premium tool (Shielded and CAT.6A)

Insertion cycles : ≥750 RJ45 and ≥200 RJ11 y ≥200 in IDC block

PRODUCTS LIST

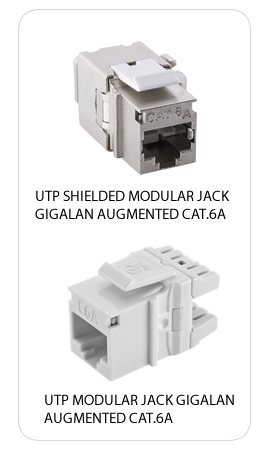

UTP SHIELDED MODULAR JACK T568A/B GIGALAN AUGMENTED CAT.6A
TYPE : F/UTP
CERTIFICATION
RoHS Compliant
ISO 9001, ISO14001
UL Listed
