CAT 7 CABLING PRODUCTS

CAT 7 CABLING PRODUCTS

General Characteristics

Category : 7
Bandwidth : 600 MHz

Application

1. Exceeds physical and electrical requirements ofANSI/TIA-568-C.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) 10GIGABIT ETHERNET, IEEE 802.3an, 10 Gbps;
b) GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
c) 100BASE-TX, IEEE 802.3u, 100 Mbps;
d) 100BASE-T4, IEEE 802.3u ,100 Mbps;
e) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
f) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
g) TP-PMD , ANSI X3T9.5, 100 Mbps;
h) 10BASE-T, IEEE802.3, 10 Mbps;
i) TOKEN RING, IEEE802.5 , 4/16 Mbps;
j) 3X-AS400, IBM, 10 Mbps;
k) Support POE+ (in accordance with IEEE 802.3at e TSB-184)
4. Solutions: Data Center, Commercial Building, Government, Financial, Health,
Education.

Type : S/FTP

Conductors : 4 pairs, 23AWG

Flammability grade : LSZH

Certifications
ISO 9001, ISO14001,RoHS Compliant, ETL

Standards Compliance : TIA-568-C.2, ANSI/TIA 569, ISO/IEC 11801 and UL 444.

PRODUCTS LIST

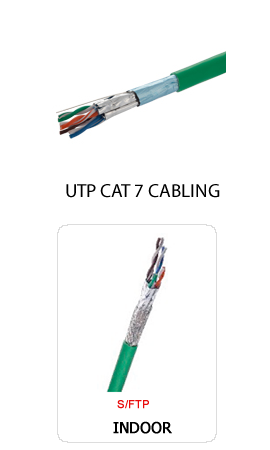

DATA CABLE GIGALAN AUGMENTED CAT.7 S/FTP 23AWGX4P LSZH GRAY 305M
INSTALLATION : INDOOR
CERTIFICATION
RoHS Compliant
ISO 9001, ISO14001
ETL Verified
