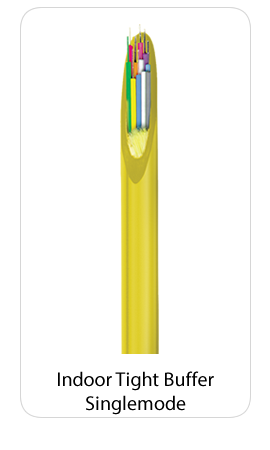

TIGHT BUFFER SINGLEMODE (SM)

TIGHT BUFFER SINGLEMODE (SM)

General Characteristics

Product Type : Optic Cable
Construction : Dielectric Tight Buffer Singlemode or Multimode

Description

Optical cable with singlemode or multimode optical fibers arranged in “tight”
design. Optical fibers are coated with acrylate resin and a secondary coating of
thermoplastic material. Dielectric strength members surround the set of fibers and
a thermoplastic flame-retardant outer jacket covers it.

Installation Environment : Indoor
Operation Environment : Installation in ducts and connection between entrance rooms

Standards Compliance

ITU-T G.651: “Characteristics of a 50/125 μm multimode graded index optical fibre
and cable”
ITU-T G.652: “Characteristics of a single-mode optical fibre and cable”
ITU-T G.657: “Characteristics of a bending loss insensitive single mode optical fibre
and cable for the access network”
ICEA S-83-596: “Standard for optical fiber cable premises distribution cable”
Telcordia GR-409-CORE: “Generic requirements for indoor fiber optic cable”

Certifications : ETL Listed

Optical Fiber : SM (Singlemode), MM (Multimode) OM1, OM2, OM3 and OM4.

Package : Wooden reel

Length 2, 4, 6, 8, 10 or 12 fiber count: 2100m ±5%
16, 24 or 36 fiber count: 900m ±5%
48 or 72 fiber count: 500m ±5%

PRODUCTS LIST

FIBER-LAN INDOOR FIBER OPTIC CABLE – 04F SM G-652D – RISER – TIGHT – YELLOW
CERTIFICATION
RoHS Compliant, ISO 9001, ISO14001, ETL Listed
p>

FIBER-LAN INDOOR FIBER OPTIC CABLE – 06F SM G-652D – RISER – TIGHT – YELLOW
CERTIFICATION
RoHS Compliant, ISO 9001, ISO14001, ETL Listed
p>

FIBER-LAN INDOOR FIBER OPTIC CABLE – 12F SM G-652D – RISER – TIGHT – YELLOW
CERTIFICATION
RoHS Compliant, ISO 9001, ISO14001, ETL Listed
