ARMORED TIGHT BUFFER MULTIMODE (MM)

ARMORED TIGHT BUFFER MULTIMODE (MM)

General Characteristics

Product Type : Optic Cable
Construction : Metallic armour against rodents, Tight Buffer, Singlemode or Multimode

Description

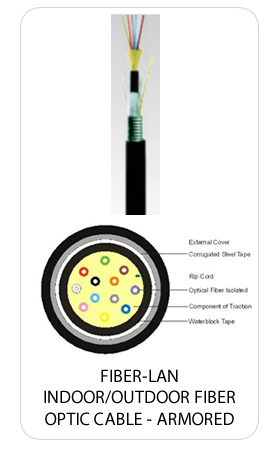

Optical cable constituted by optical fibers insulated in thermoplastic material.
Dielectric yarns are applied over optical fibers for traction resistance. This core is
covered with a thermoplastic inner jacket and over that jacket a corrugated steel
tape is applied for rodent protection. A flame retardant thermoplastic outer jacket
covers this set.

Installation Environment : Indoor / Outdoor
Operation Environment : Installation in ducts and connection between entrance
rooms

Standards Compliance

ITU-T G.651: “Characteristics of a 50/125 μm multimode graded index optical
fibre and cable”;
ITU-T G.652: “Characteristics of a single-mode optical fibre and cable”;
ITU-T G.657: “Characteristics of a bending loss insensitive single mode optical
fibre and cable for the access network”;
ICEA S-83-596: “Standard for optical fiber cable premises distribution cable”;
ICEA S-104-696: “Indoor-outdoor optical fiber cable”;
Telcordia GR-409-CORE: “Generic requirements for premise fiber optic cable”;
Telcordia GR-20-CORE: “Generic requirements for optical fiber and optical
fiber cable”;
ANSI/TIA 568-C.3: “Optical fiber cabling components standard”.

Outer Jacket : Flame retardant thermoplastic material.

Optical Fiber : SM (Singlemode), MM (Multimode) OM1, OM2, OM3 and OM4.

Package : Wooden reel

Length 2100m ±5%.

PRODUCTS LIST

FIBER-LAN INDOOR/OUTDOOR FIBER OPTIC CABLE – ARMORED – 06F MM(50.0) OM2 – TIGHT – BLACK
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001

FIBER-LAN INDOOR/OUTDOOR FIBER OPTIC CABLE – ARMORED – 12F MM(50.0) OM2 – TIGHT – BLACK
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001

FIBER-LAN INDOOR/OUTDOOR FIBER OPTIC CABLE – ARMORED – 06F MM(50.0) OM3 – TIGHT – BLACK
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001

FIBER-LAN INDOOR/OUTDOOR FIBER OPTIC CABLE – ARMORED – 12F MM(50.0) OM3 – TIGHT – BLACK
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001

FIBER-LAN-AR 06F INDOOR/OUTDOOR OM4 MM(50) COG 10 GIGABIT (TIGHT ARMORED)
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001

FIBER-LAN-AR 08F INDOOR/OUTDOOR OM4 MM(50) COG 10 GIGABIT (TIGHT ARMORED)
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001
