TIGHT BUFFER MULTIMODE (MM)

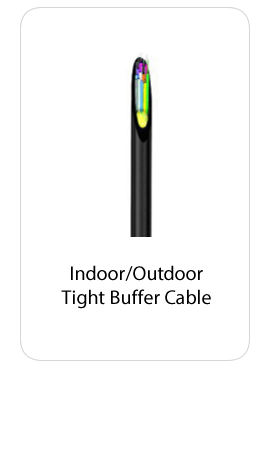

Indoor/Outdoor Tight Buffer Cable LSZH – Mutimode (MM)



Indoor_Outdoor Tight Buffer Cable.fw



General Characteristics



Product Type : Optic Cable
Construction : Dielectric Tight Buffer Singlemode or Multimode



Description



Optical cable with singlemode or multimode optical fibers arranged in “tight buffer”
design. Optical fibers are coated with acrylate resin and a secondary coating of
thermoplastic material. Dielectric strength members surround the set of fibers and a black thermoplastic flame-retardant outer jacket provides enhanced protection.



Installation Environment : Indoor / Outdoor
Operation Environment : Installation in ducts and connection between entrance
rooms



Standards Compliance



ITU-T G.651: “Characteristics of a 50/125 μm multimode graded index optical
fibre and cable”;
ITU-T G.652: “Characteristics of a single-mode optical fibre and cable”;
ITU-T G.657: “Characteristics of a bending loss insensitive single mode optical
fibre and cable for the access network”;
ICEA S-83-596: “Standard for optical fiber cable premises distribution cable”;
ICEA S-104-696: “Indoor-outdoor optical fiber cable”;
Telcordia GR-409-CORE: “Generic requirements for premise fiber optic cable”;
Telcordia GR-20-CORE: “Generic requirements for optical fiber and optical
fiber cable”;
ANSI/TIA 568-C.3: “Optical fiber cabling components standard”.



Outer Jacket



Black thermoplastic flame-retardant material providing enhanced protection to the
cable core. If necessary, cable jacket can be provided in low smoke zero halogen
(LSZH) material.



Optical Fiber : SM (Singlemode), MM (Multimode) OM1, OM2, OM3 and OM4.



Package : Wooden reel



Length 2100m ±5%.



PRODUCTS LIST



FIBER-LAN INDOOR/OUTDOOR FIBER OPTIC CABLE – 06F MM(50.0) OM2 – RISER – TIGHT – BLACK – LSZH
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001



FIBER-LAN INDOOR/OUTDOOR FIBER OPTIC CABLE – 12F MM(50.0) OM2 – RISER – TIGHT – BLACK – LSZH
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001



FIBER-LAN INDOOR/OUTDOOR FIBER OPTIC CABLE – 06F MM(50) OM3 – RISER – TIGHT – ACQUA
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001



FIBER-LAN INDOOR/OUTDOOR FIBER OPTIC CABLE – 12F MM(50) OM3 – RISER – TIGHT – ACQUA -LSZH
CERTIFICATION
RoHS Compliant, ISO 9001, ISO 14001



FIBER-LAN 06F MM(50) OM4 INDOOR/OUTDOOR LSZH 10 GIGABIT (TIGHT)



FIBER-LAN 12F MM(50) OM4 INDOOR/OUTDOOR LSZH 10 GIGABIT (TIGHT)
