PIGTAIL AND ADAPTER KIT MULTIMODE (MM)

FIBER OPTIC PIGTAIL AND ADAPTER KIT MULTIMODE (MM)

General Characteristics

Product Type : Pigtail and Optical Adapter
Description
The Optical Extension Kit consists typically of two
main parts :
Optical Pigtail: optical cable, singlefiber or duplex, connectorized at one end only;
Optical Adaptor: coupler that interconnects two optical connectors, of the same type of extension that is being provided.

Advantage
Recommended for internal use only, ending optical cables
in optical distributors, in optical systems with low loss and high bandwidth,
like: high distance systems, backbone networks, video and data transmission
and distribution;
Exceeds performance requirements of EIA/TIA-568-B.3 standard;
Support for background requirements of IEEE 802.3 (Gigabit and 10 Gigabit
Ethernet) and ANSI T11.2 (Fibre Channel) standard;
Full assembled and tested on factory;
High performance for insertion loss and return loss (backreflection);
Avaiable in diverse kinds of optical connectors;
Avaiable for singlemode and multimode optical fiber;
Avaiable in PC and APC polishing.

Color
Fiber D 0.9 D 2.0
Singlemode Standard (G.652B) White Blue
Singlemode LWP (G.652D) White Blue
Singlemode (G657) White White
Multimode OM1 (62,5µm) Orange Orange
Multimode OM2 (50µm) Orange Orange
Multimode OM3 (50µm) Acqua Acqua
Multimode OM4 (50µm) Acqua Acqua

Connector Type LC, SC, MT-RJ, ST, FC, E-2000
Polish Type PC (SPC/UPC) – Singlemode and multimode fibers
APC – Singlemode fibers

Standard

ABNT NBR 14433 – Connectors mounted on optical cords or optical fiber cables and
adapters – Specification
ABNT NBR 14705 – Classification of internal cables for telecommunications about
of flame behavior – Specification
ISO 8877 – Information Technology – Telecommunications and information exchange
between systems – Interface connector and contact assignments for ISDN basic
access interface located at reference points S and T
ANSI/EIA/TIA-568-C.0 – Generic Telecommunications Cabling for Costumer Premises
ANSI/EIA/TIA-568-C.1 – Commercial Building Telecommunications Cabling Standard
ANSI/EIA/TIA-568-C.3 – Optical Fiber Cabling Component Standard
ISO/IEC 11.801 Ed.02

PRODUCTS LIST

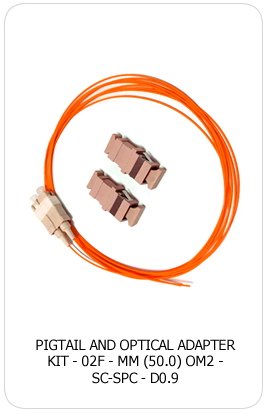

PIGTAIL AND OPTICAL ADAPTER KIT – 02F – MM (50.0) OM2 – SC-SPC – D0.9 – ORANGE
PIGTAIL AND OPTICAL ADAPTER KIT – 02F – MM (50.0) OM2 – LC-SPC – D0.9 – ORANGE
PIGTAIL AND OPTICAL ADAPTER KIT – 02F – MM (50.0) OM2 – ST-SPC – D0.9 – ORANGE
PIGTAIL AND OPTICAL ADAPTER KIT – 02F – MM (50.0) OM3 – LC-UPC – D0.9 – ACQUA
PIGTAIL AND OPTICAL ADAPTER KIT – 02F – MM (50.0) OM3 – SC-UPC – D0.9 – ACQUA
PIGTAIL AND OPTICAL ADAPTER KIT – 02F – MM (50.0) OM3 – ST-UPC – D0.9 – ACQUA

CERTIFICATION
RoHS Compliant
ISO 9001, ISO14001
LC-APC 0583-08-0256
LC-PC 1344-06-0256
SC-APC 0483-02-0256
SC-PC 1365-06-0256
FC-PC 1366-06-0256
FC-APC 0485-02-0256
ST-PC 0484-02-0256
MT-RJ 1364-06-0256
E2000-APC 0482-02-0256
