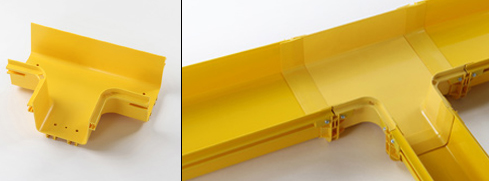

240 to 120 Horizontal T for fiber ducting

240 to 120 Horizontal T for fiber ducting



40 to 120 Horizontal T L=0.5m include: ABS 240 to 120 Horizontal T:1PCS (CF100-240-Connectorconnector set 2pcs and CF100-120-Connector 1 pc ) Apply to: 240 to 120 Horizontal T for



Width
120MM 240MM 300MM



Product introduction



1. Technical parameters



Product Name Fiber ducting
Brand Vichnet
Place of Origin Zhejiang, China
Material PVC,ABS
Color Yellow,Orange,Blue,Red
Guarantee 10 years
OEM service Available
Nearest Port Ningbo, China
Monthly output 500K meters
Flame-retardant rate FV-0
Sample order Available
Certificates RoHs





2. Advantages

For Vichnet Fiber ducting, we promised:

★ 10 Years warranty for Wire Mesh Cable Tray and Optical Fiber Cable Tray.

★ The appointed supplier of Google, Microsoft, SIEMENS, ADM, COCACOL.

★ Customers spread over 100 countries, even in Japan market.

★ Vichnet fiber cable tray’s flame-retardant rate is GB/T2048-2008 FV-0, it won’t release poisonous gas even in extreme conditions.



3.Project References
1423220817217959
1423221001120455



Applications – Cable Exit Kit Drop Options
An Cable Exit Kit is recommended over active equipment racks or cabinets. The rigid 2-inch drop option and 2-inch flex tube option are two methods for directing fibers out of overhead Fiber Cable Tray downspouts and into optical equipment bays. The rigid system is recommended because it offers excellent bend radius control and ensures a quality fiber backbone installation.



Applications – Trumpet Flare Options
The trumpet flare is recommended at the bottom of a downspout when directing fibers into a fiber distribution bay. Trumpet flares provide bend radius protection and allow for a large number of fiber patch cords to transition into a fiber bay. A 4×4 trumpet flare is used for the 4×4 and 4×6 downspouts.



Applications – Raceway Reconfigurations
Cut-in T, Fitting and Fixture
The innovative cut-in T fitting and fixture enable on-site raceway modifications without jeopardizing the integrity of installed fibers. Available in 4-, 6-, and 12-inch widths, the cut-in T fitting can be retrofitted to any installed 4-, 6-, 12- inch straight section using the cut-in T fixture and the hardware supplied with the fitting. No special tools are required.



Applications – Supporting Overhead Systems
A variety of support kits are available for each Fiber ducting system. Whenever possible, Fiber ducting support kits should be attached to existing hardware (cable racks, digital cableways, existing threaded rods or equipment racks).
