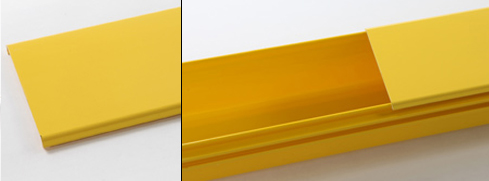

CF100-120-2000 Fiber Cable Tray

Description:
What is a Fiber Cable Tray System?

Vichnet Fiber Cable Tray System is a collection of channels, fittings, and mounting brackets that can be assembled to create a structure that protects fiber optic and high performance copper data cabling from physical damage that can disrupt or cut off signal transmission. It also provides a versatile, scalable pathway that reduces the costs associated with maintaining existing network operations and implementing new services.
Fiber Cable Tray Systems are not just a means of containing cabling deployed in data centers or central offices.They are an integral component of the overall cable management system needed to ensure optimum network performance.

Straight section
CF100-120-2000 CF100-240-2000

Product introduction

Technical parameters

Advantages
For Vichnet fiber cable tray, we promised:
★ 10 Years warranty for Wire Mesh Cable Tray and Optical Fiber Cable Tray.
★ The appointed supplier of Google, Microsoft, SIEMENS, ADM, COCACOL.
★ Customers spread over 100 countries, even in Japan market.
★ Vichnet fiber cable tray’s flame-retardant rate is GB/T2048-2008 FV-0, it won’t release poisonous gas even in extreme conditions.

Applications – Cable Exit Kit Drop Options
An Cable Exit Kit is recommended over active equipment racks or cabinets. The rigid 2-inch drop option and 2-inch flex tube option are two methods for directing fibers out of overhead Fiber Cable Tray downspouts and into optical equipment bays. The rigid system is recommended because it offers excellent bend radius control and ensures a quality fiber backbone installation.

Applications – Trumpet Flare Options
The trumpet flare is recommended at the bottom of a downspout when directing fibers into a fiber distribution bay. Trumpet flares provide bend radius protection and allow for a large number of fiber patch cords to transition into a fiber bay. A 4×4 trumpet flare is used for the 4×4 and 4×6 downspouts.

Applications – Raceway Reconfigurations
Cut-in T, Fitting and Fixture
The innovative cut-in T fitting and fixture enable on-site raceway modifications without jeopardizing the integrity of installed fibers. Available in 4-, 6-, and 12-inch widths, the cut-in T fitting can be retrofitted to any installed 4-, 6-, 12- inch straight section using the cut-in T fixture and the hardware supplied with the fitting. No special tools are required.

Applications – Supporting Overhead Systems
A variety of support kits are available for each Fiber Cable Tray system. Whenever possible, Fiber Cable Tray support kits should be attached to existing hardware (cable racks, digital cableways, existing threaded rods or equipment racks).
