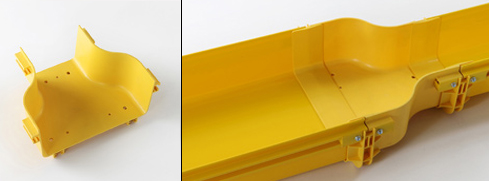

Reducer for raceway systems

Reducer from 240mm width to 120mm Per set include: Reducer:1pcs (same size connector set between Reducer and Fiber cable tray ) Apply to: fiber cable trayReducer for 240 and 120 fiber runner

Width
120MM 240MM 300MM

Product introduction

1. Technical parameters

2. Advantages
For Vichnet raceway systems, we promised:
★ 10 Years warranty for Wire Mesh Cable Tray and raceway systems.
★ The appointed supplier of Google, Microsoft, SIEMENS, ADM, COCACOL.
★ Customers spread over 100 countries, even in Japan market.
★ Vichnet fiber cable tray’s flame-retardant rate is GB/T2048-2008 FV-0, it won’t release poisonous gas even in extreme conditions.

3.Project References

The Industry’s Most Comprehensive raceway systems
The Vichnet raceway systems offer the greatest breadth of optical raceway products in the industry. Raceway systems add greater flexibility and drive down installation time to ensure a smooth deployment.
Raceway systems is a raceway system designed to protect and route fiber optic patch cords, multi-fiber cable assemblies and intrafacility fiber cable (IFC) to and from fiber splice enclosures, fiber distribution frames and fiber optic terminal devices. FiberGuide ensures a two-inch minimum bend radius is maintained throughout the system. Tool-less, junctions, cover options significantly reduce the amount of time required for installation.
The raceway systems system is a complete set of products designed and manufactured to ensure total off-frame protection and ease of use. Basic components include horizontal and vertical straight sections, horizontal and vertical elbows, downspouts, junctions and numerous support hardware and flex-tube kits.



Applications – Cable Exit Kit Drop Options
An Cable Exit Kit is recommended over active equipment racks or cabinets. The rigid 2-inch drop option and 2-inch flex tube option are two methods for directing fibers out of overhead Fiber Cable Tray downspouts and into optical equipment bays. The rigid system is recommended because it offers excellent bend radius control and ensures a quality fiber backbone installation.

Applications – Trumpet Flare Options
The trumpet flare is recommended at the bottom of a downspout when directing fibers into a fiber distribution bay. Trumpet flares provide bend radius protection and allow for a large number of fiber patch cords to transition into a fiber bay. A 4×4 trumpet flare is used for the 4×4 and 4×6 downspouts.

Applications – Raceway Reconfigurations
Cut-in T, Fitting and Fixture
The innovative cut-in T fitting and fixture enable on-site raceway modifications without jeopardizing the integrity of installed fibers. Available in 4-, 6-, and 12-inch widths, the cut-in T fitting can be retrofitted to any installed 4-, 6-, 12- inch straight section using the cut-in T fixture and the hardware supplied with the fitting. No special tools are required.

Applications – Supporting Overhead Systems
A variety of support kits are available for each Fiber Cable Tray system. Whenever possible, Fiber Cable Tray support kits should be attached to existing hardware (cable racks, digital cableways, existing threaded rods or equipment racks).
