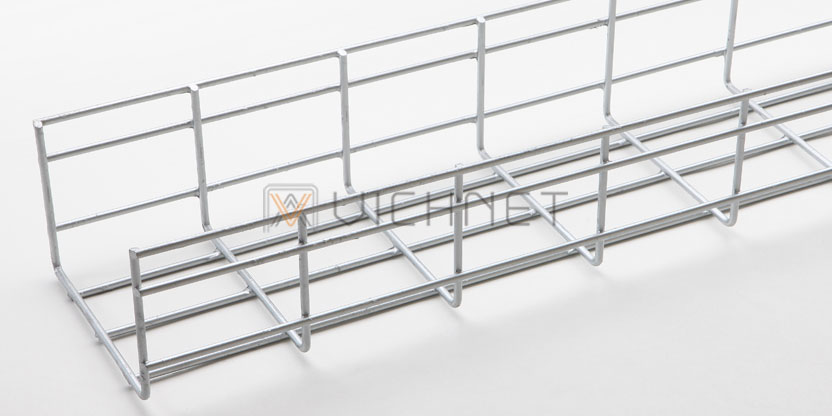

(66) 081-255-2622Hot Dip Galvanized CM100 wire basket cable tray
Width:
50MM 75MM 100MM 150MM 200MM 250MM 300MM 350MM 400MM 450MM 500MM 600MM 700MM 800MM 900MM 1000MM
Diameter(3.5mm~6.0mm):
3.5MM 3.8MM 4.0MM 4.5MM 4.8MM 5.0MM 5.5MM 6.0MM
Product introduction
1. Technical parameters
| Product Name | CM100 wire basket cable tray |
| Type | CM100 |
| Design | Straight-wire edge |
| Brand | Vichnet |
| Place of Origin | Zhejiang, China |
| Material | Q235 steel |
| Surface Finish | Hot dip galvanized |
| Finish Thickness | HDG>60microns |
| Color | Zinc |
| Safe work loading | BS EN 61537:2007 Cable Management Clause 10.4 |
| Welding Strength Tests | Min breaking force 1166N |
| Guarantee | 10 years |
| OEM service | Available |
| Nearest Port | Ningbo, China |
| Monthly output | 500K meters |
| Sample order | Available |
| HS Code | 73089000 |

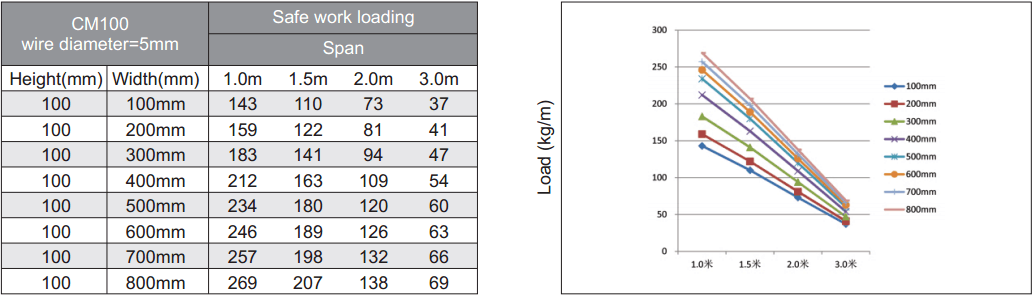

2. Loading capability of Vichnet wire basket cable tray(Kg/meter)
CM100((height=100mm,wire diameter=5mm)
3. Vichnet Advantages
★ Vichnet is the only Manufacturer certificated with UL CE for wire basket cable tray in China.
★ 10 Years warranty for wire basket cable tray and Optical Fiber Cable Tray.
★ ISO9001, GMC approved management system for wire basket cable tray.
★ The appointed supplier of Google, Microsoft, SIEMENS, ADM, COCACOL.
★ The first Wire Mesh Cable Tray manufacturer applied MFDC for welding.
★ Customers spread over 100 countries, even in Japan market.
Advantages for HDG wire basket cable tray
★ We draw down 8mm wire to 5mm to smooth and strengthen the wire.
★ There is no tolerance of our tray size and wire diameter.
★ Our zinc coating is non-toxic and 60μ up, surface uniform.
★ Environmental protection, and it can be passed Rohs test.
★ Most of our clients come to us from other suppliers because the powder coating quality problem.
4. Problem
The most problems for HDG wire basket cable tray are burrs and welding strength
The tray will have many burrs on it after hot dip galvanized,burrs will damage the cable and hurt the hand .
We will hand file it out .It costs a lot of time and labor . Welding strength will affect the loading capacity and safety
Why the HDG wire basket cable tray have many burrs ? This is big problem of HDG , so my factory worker will hand file it out each one .
5. Story
It is a story about HDG quality problem whcih happened several months ago. One of our client from America telephoned to one sales manager and he wanted to buy some hot dipped galvanized wire mesh cable tray. But after we sent our price list to him, he said, “Oh my God, your wire mesh cable tray is twice more expensive than the Turkey supplier”, and he refused to our advice of sending sample. He decided to buy the cable basket from Turkey and install these cable basket in his building project. However, some months later, he telephoned us again and complained the Turkey supplier for one hour. Because the cable baskets applying his project start to rust! It only pasted three months! We heard that and advice him to send us some Turkey supplier’s samples to make a thickness of finishing test. The result is that Turkey HDG cable basket’s zinc galvanized thickness is only 30 μm, but Vichnet HDG wire mesh cable tray zinc galvanized thickness is more than 60 μm. We also guarantee 10 years warranty!.
