(66) 081-255-2622Hot Dip Galvanized CM150 wire cable basket
Width:
50MM 75MM 100MM 150MM 200MM 250MM 300MM 350MM 400MM 450MM 500MM 600MM 700MM 800MM 900MM 1000MM
Diameter(3.5mm~6.0mm):
3.5MM 3.8MM 4.0MM 4.5MM 4.8MM 5.0MM 5.5MM 6.0MM
Product introduction
1. Technical parameters
| Product Name | CM150 wire cable basket |
| Type | wire cable basket |
| Design | Straight-wire edge |
| Brand | Vichnet |
| Place of Origin | Zhejiang, China |
| Material | Q235 steel |
| Surface Finish | Hot dip galvanized |
| Finish Thickness | HDG>60microns |
| Color | Zinc |
| Safe work loading | BS EN 61537:2007 Cable Management Clause 10.4 |
| Welding Strength Tests | Min breaking force 1166N |
| Guarantee | 10 years |
| OEM service | Available |
| Nearest Port | Ningbo, China |
| Monthly output | 500K meters |
| Sample order | Available |
| HS Code | 73089000 |

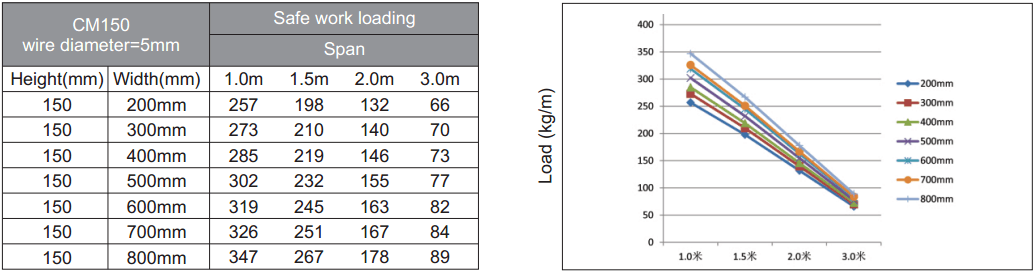

2. Loading capability of Vichnet wire cable basket(Kg/meter)
CM150((height=150mm,wire diameter=5mm)
3. Vichnet Advantages
★ Vichnet is the only Manufacturer certificated with UL CE for wire cable basket in China.
★ 10 Years warranty for wire cable basket and Optical Fiber Cable Tray.
★ ISO9001, GMC approved management system for wire cable basket.
★ The appointed supplier of Google, Microsoft, SIEMENS, ADM, COCACOL.
★ The first wire cable basket manufacturer applied MFDC for welding.
★ Customers spread over 100 countries, even in Japan market.
Advantages for HDG wire cable basket
★ We draw down 8mm wire to 5mm to smooth and strengthen the wire.
★ There is no tolerance of our tray size and wire diameter.
★ Our zinc coating is non-toxic and 60μ up, surface uniform.
★ Environmental protection, and it can be passed Rohs test.
4. Problem
The most problems for HDG wire cable basket are burrs and welding strength
The tray will have many burrs on it after hot dip galvanized,burrs will damage the cable and hurt the hand .
We will hand file it out .It costs a lot of time and labor . Welding strength will affect the loading capacity and safety
Why the HDG wire cable basket have many burrs ? This is big problem of HDG , so my factory worker will hand file it out each one .
5. Story
Vichnet became extraordinary and
It is also a story about HDG wire mesh cable tray. One of our clients from the United Arab Emirates wanted to use cable tray on their power cables to manage the cable system. Before they found Vichnet wire mesh cable tray on the website, they are used to installing traditional cable ladders. We advised our clients that Vichnet wire mesh cable tray’s loading capacity is 27% better than the traditional cable tray and there is no problem to loading the heavy power cables. We also have much experience in planting project in China. When the clients visited our company, we made a PPT including many pictures about wire mesh cable tray and power cables. When the clients went back to his country, he decided to place the big order of HDG wire mesh cable tray. He also said,” We can’t believed that the beautiful cable basket have such amazing loading capacity until I met Vichnet, Vichnet cable basket changed my view to cable tray .”
