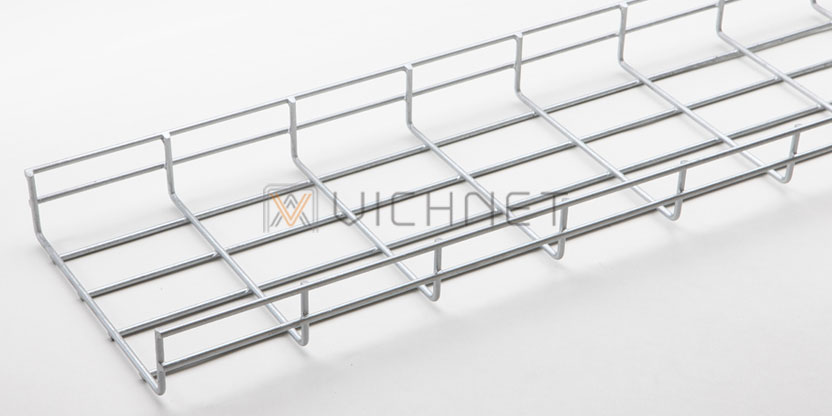

(66) 081-255-2622Hot Dip Galvanized CM50 cable wire basket
Width:
50MM 75MM 100MM 150MM 200MM 250MM 300MM 350MM 400MM 450MM 500MM 600MM 700MM 800MM 900MM 1000MM
Diameter(3.5mm~6.0mm):
3.5MM 3.8MM 4.0MM 4.5MM 4.8MM 5.0MM 5.5MM 6.0MM
Product introduction
1. Technical parameters
| Product Name | CM50 cable wire basket |
| Type | cable wire basket |
| Design | Straight-wire edge |
| Brand | Vichnet |
| Place of Origin | Zhejiang, China |
| Material | Q235 steel |
| Surface Finish | Hot dip galvanized |
| Finish Thickness | HDG>60microns |
| Color | Zinc |
| Safe work loading | BS EN 61537:2007 Cable Management Clause 10.4 |
| Welding Strength Tests | Min breaking force 1166N |
| Guarantee | 10 years |
| OEM service | Available |
| Nearest Port | Ningbo, China |
| Monthly output | 500K meters |
| Sample order | Available |
| HS Code | 73089000 |

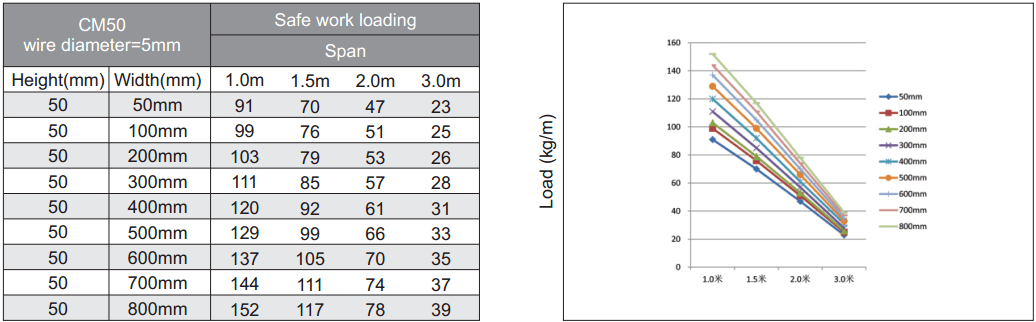

2. Loading capability of Vichnet cable wire basket(Kg/meter)
CM50((height=50mm,wire diameter=5mm)
3. Vichnet Advantages
★ Vichnet is the only Manufacturer certificated with UL CE for cable wire basket in China.
★ 10 Years warranty for cable wire basket and Optical Fiber Cable Tray.
★ ISO9001, GMC approved management system for cable wire basket.
★ The appointed supplier of Google, Microsoft, SIEMENS, ADM, COCACOL.
★ The first cable wire basket manufacturer applied MFDC for welding.
★ Customers spread over 100 countries, even in Japan market.
Advantages for HDG cable wire basket
★ We draw down 8mm wire to 5mm to smooth and strengthen the wire.
★ There is no tolerance of our tray size and wire diameter.
★ Our zinc coating is non-toxic and 60μ up, surface uniform.
★ Environmental protection, and it can be passed Rohs test.
4. Problem
The most problems for HDG wire mesh cable tray are burrs and welding strength
The tray will have many burrs on it after hot dip galvanized,burrs will damage the cable and hurt the hand .
We will hand file it out .It costs a lot of time and labor . Welding strength will affect the loading capacity and safety
Why the HDG wire mesh cable tray have many burrs ? This is big problem of HDG , so my factory worker will hand file it out each one .
5. Story
One of our big clients from Japan orders one container every month. Japanese is very strict to the product. They asked the wire mesh cable tray cannot have any defect. Every time they will make a inspection to test the product’s quality. Vichnet wire mesh cable tray never have any problem in the inspection. Every time our client is very satisfy, he once wrote an Email to praise us, “ Vichnet is the best manufacturer I have seen, their team is enthusiastic and their quality control system is perfect, every product is tested before packing. It is amazing! I have confidence that they will become the NO.1 wire mesh cable tray manufacturer in the near future! ” Another Japanese client also trusts us. One time, he didn’t want to buy wire mesh cable tray, he needed cabinet, but he also found us and wanted us to search the cabinet supplier for him. He said, “ I trust Vichnet team, once I have any business, I will consider Vichnet even if they don’t produce it ”
