(66) 081-255-2622SS304 CM100 Wire management solutions
Width:
50MM 75MM 100MM 150MM 200MM 250MM 300MM 350MM 400MM 450MM 500MM 600MM 700MM 800MM 900MM 1000MM
Diameter(3.5mm~6.0mm):
3.5MM 3.8MM 4.0MM 4.5MM 4.8MM 5.0MM 5.5MM 6.0MM
Product introduction
1. Technical parameters
| Product Name | wire management solutions |
| Type | Wire mesh cable tray |
| Design | Straight-wire edge |
| Brand | Vichnet |
| Place of Origin | Zhejiang, China |
| Material | stainless steel |
| Surface Finish | Acid washing polishing |
| Finish Thickness | N/A |
| Color | Zinc |
| Safe work loading | BS EN 61537:2007 Cable Management Clause 10.4 |
| Welding Strength Tests | Min breaking force 1166N |
| Guarantee | 10 years |
| OEM service | Available |
| Nearest Port | Ningbo, China |
| Monthly output | 500K meters |
| Sample order | Available |
| HS Code | 73089000 |

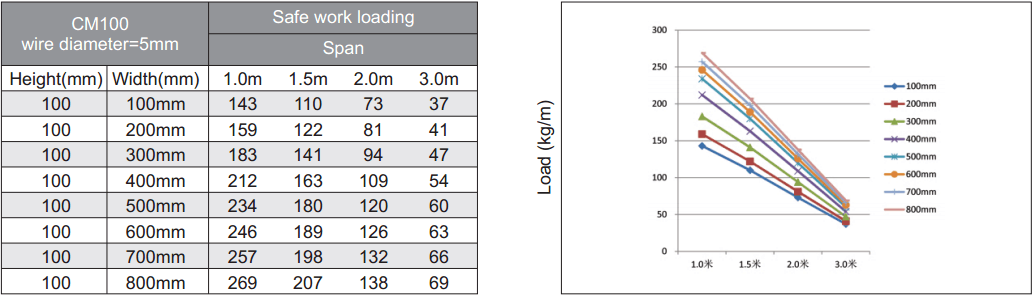

2. Loading capability of Vichnet wire baskets(Kg/meter)
CM100((height=100mm,wire diameter=5mm)
